Clinton Presidential Library | Programming

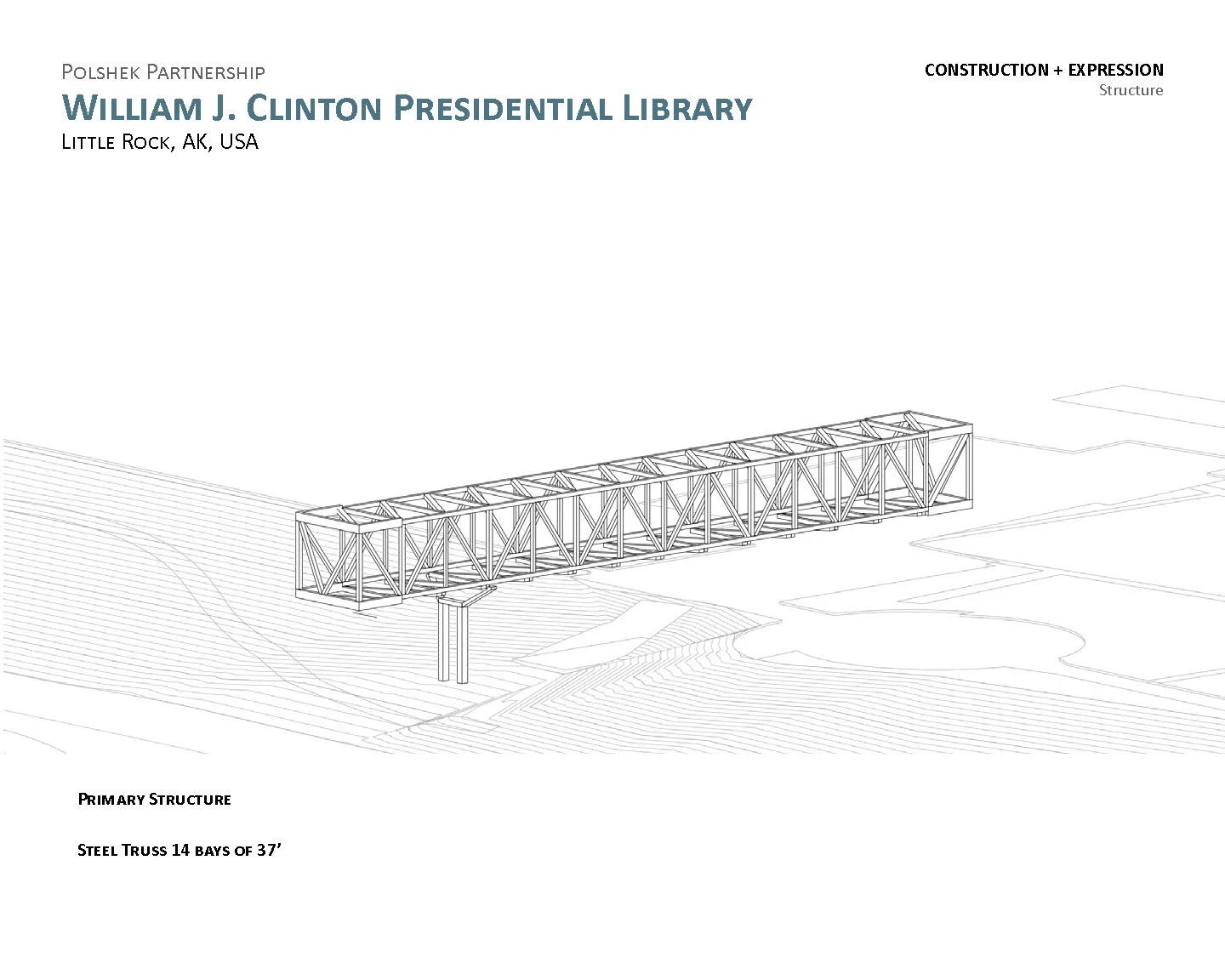

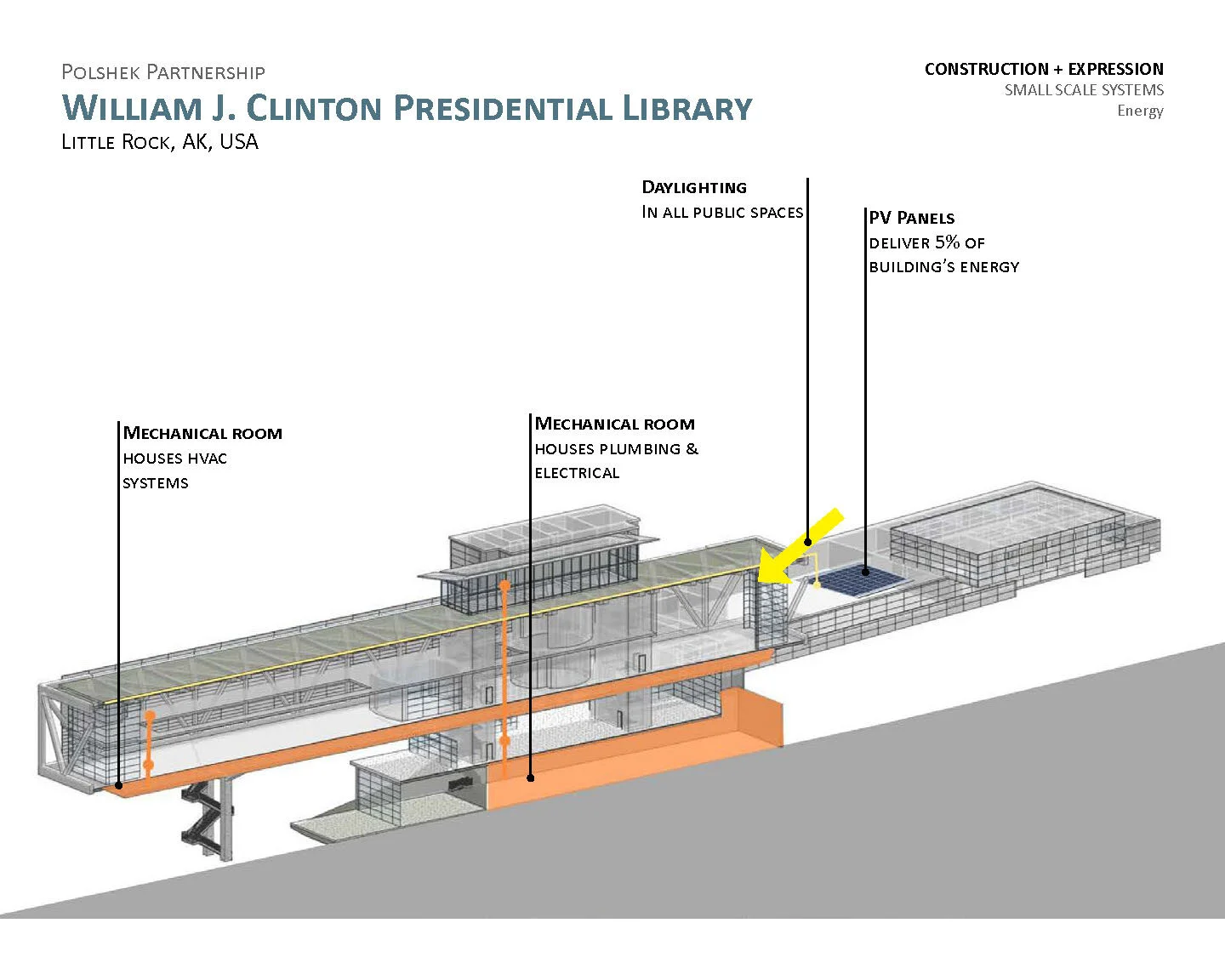

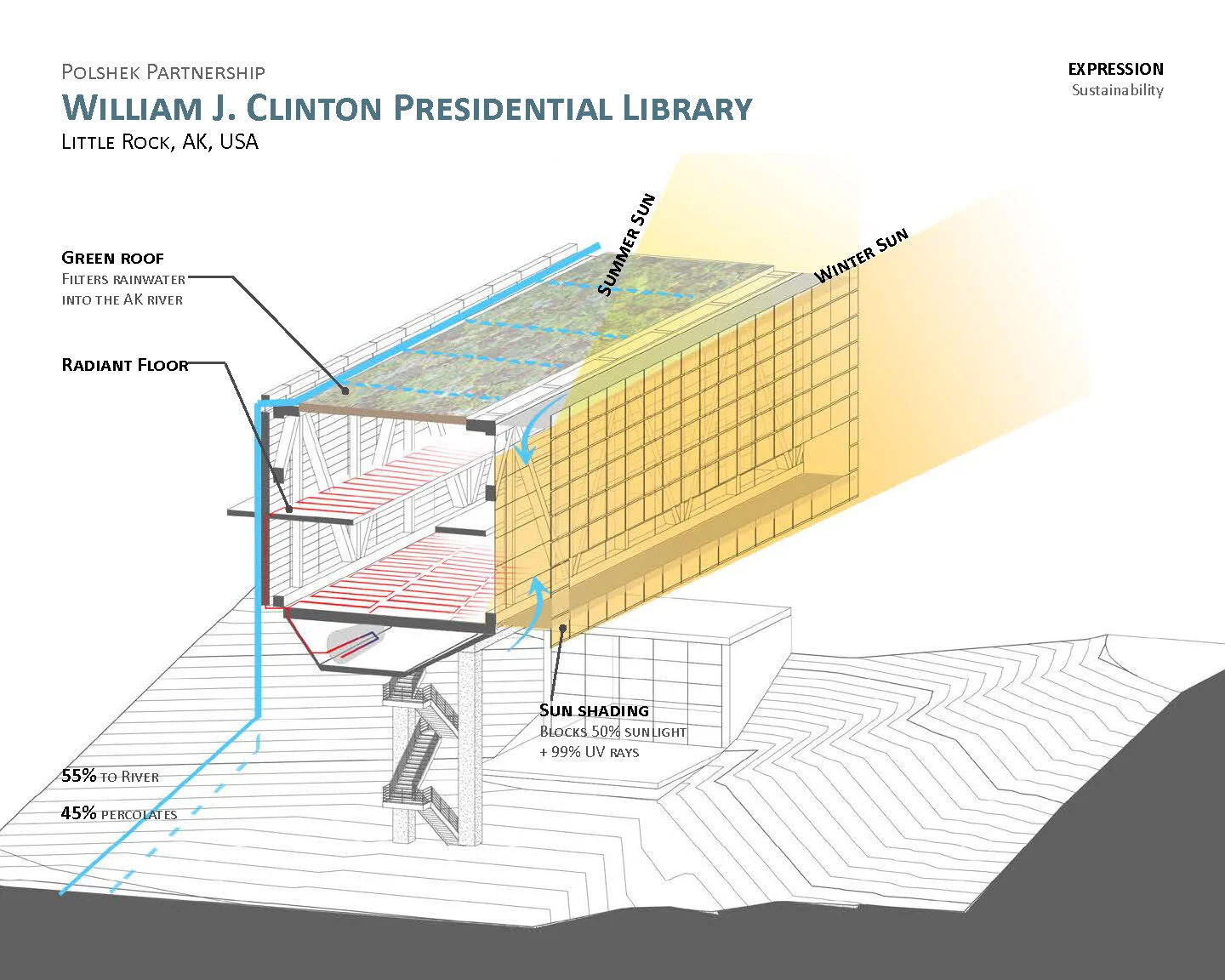

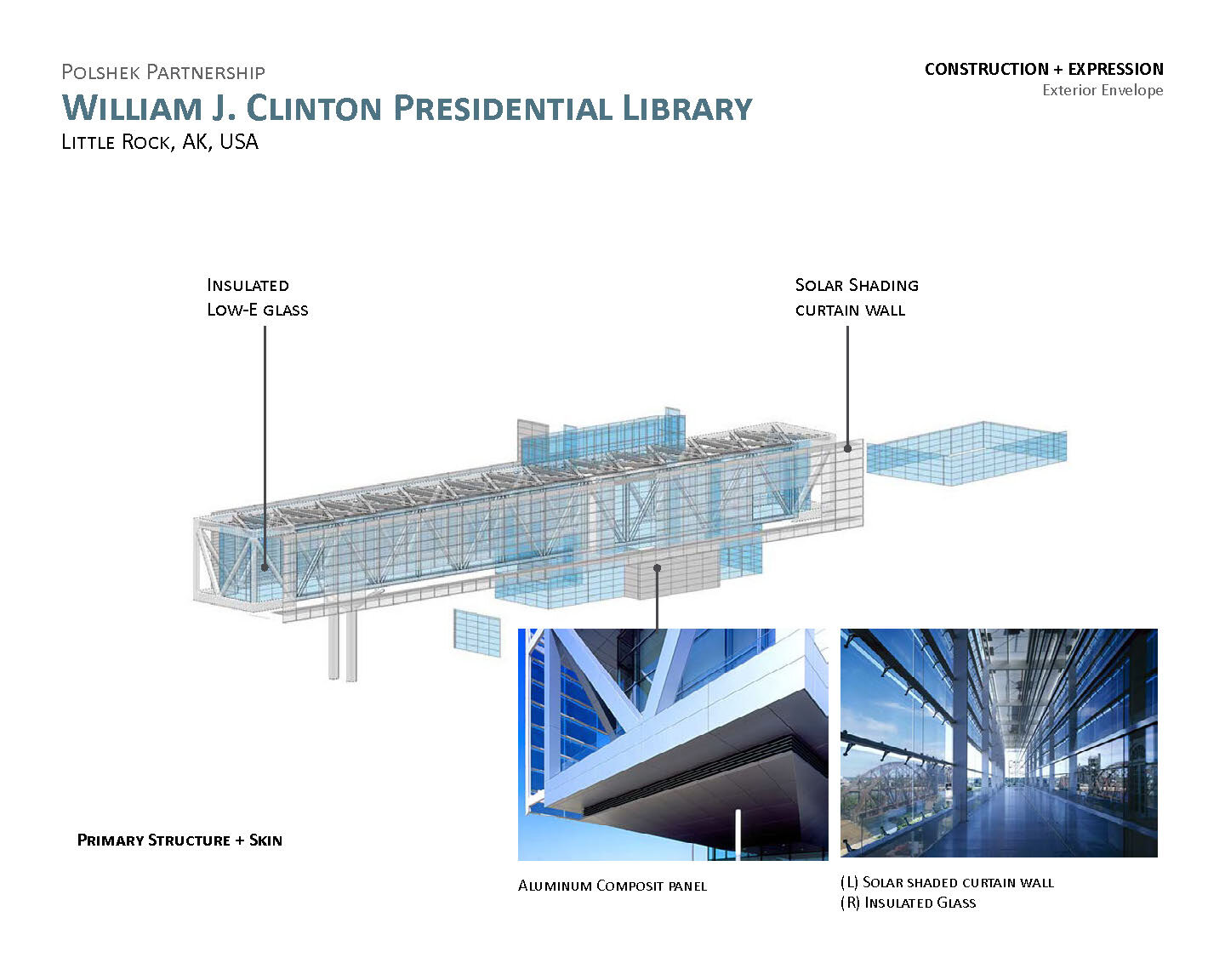

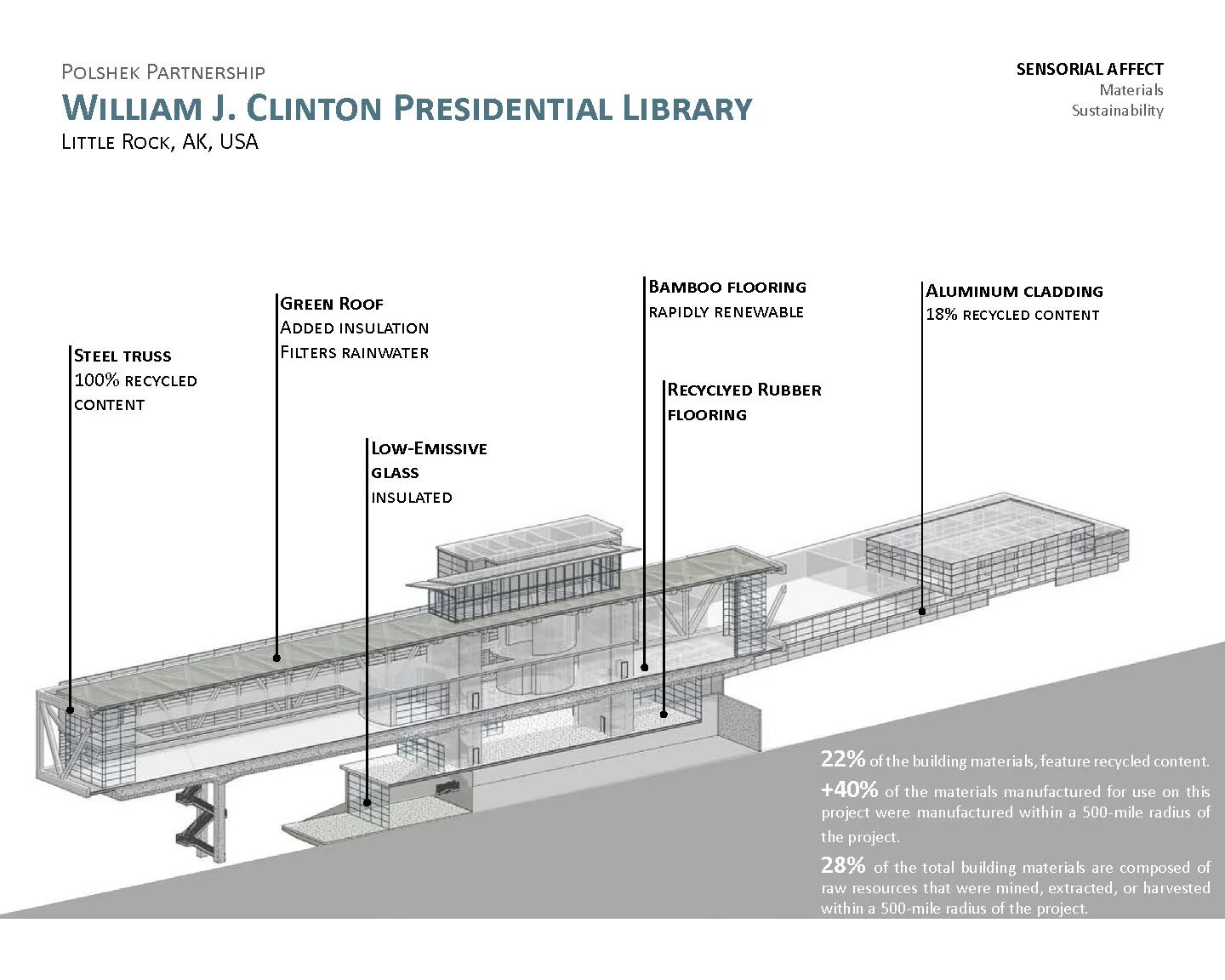

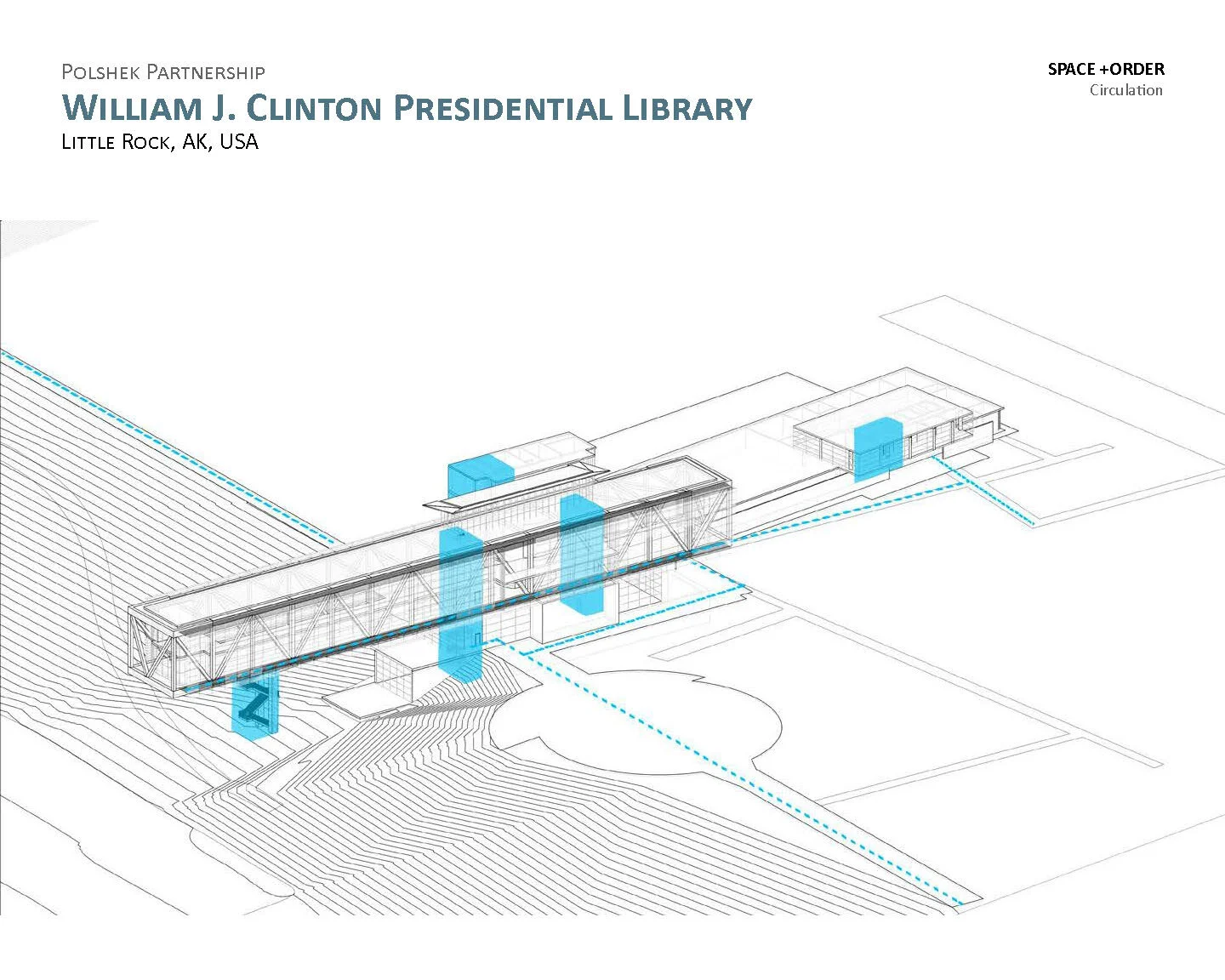

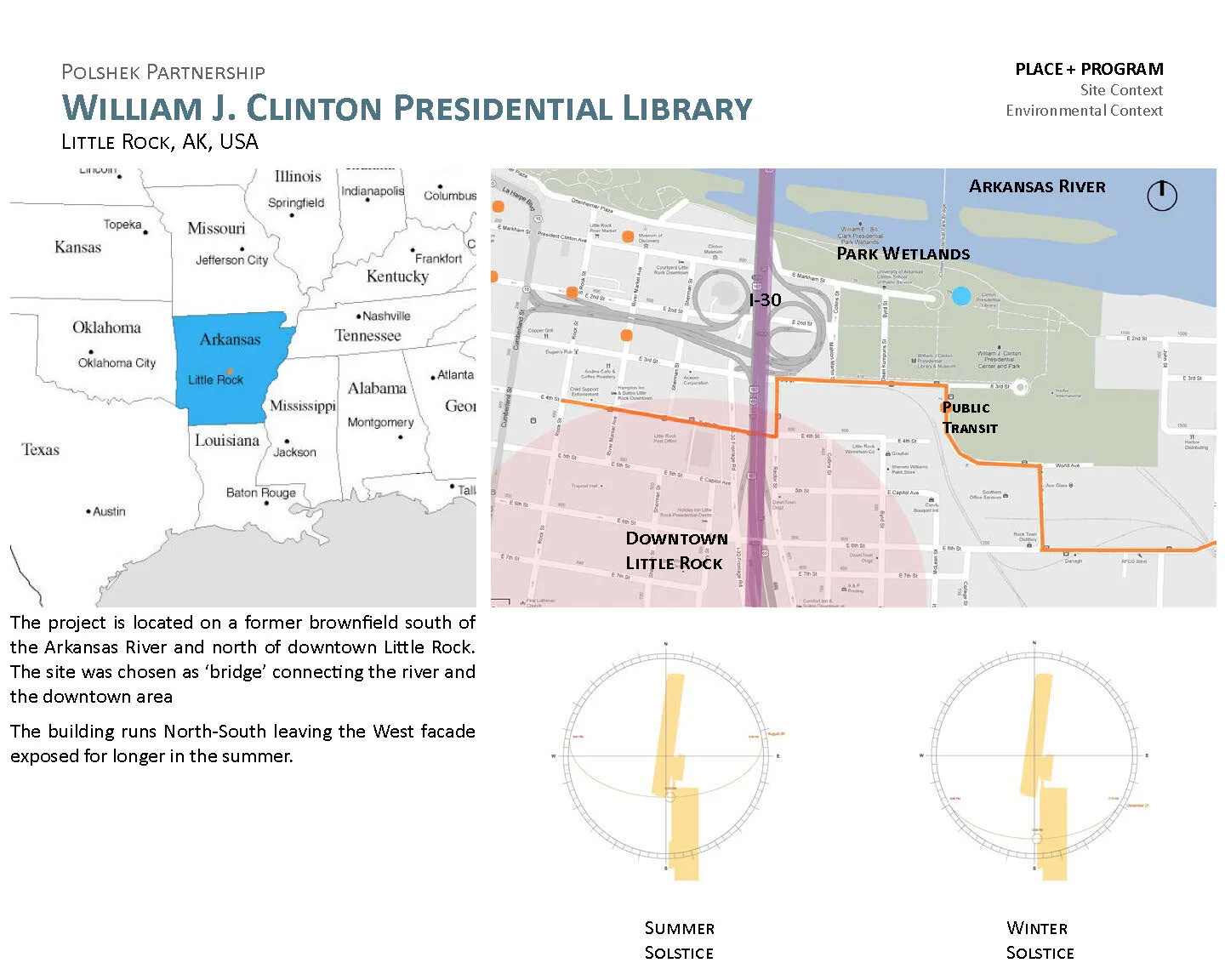

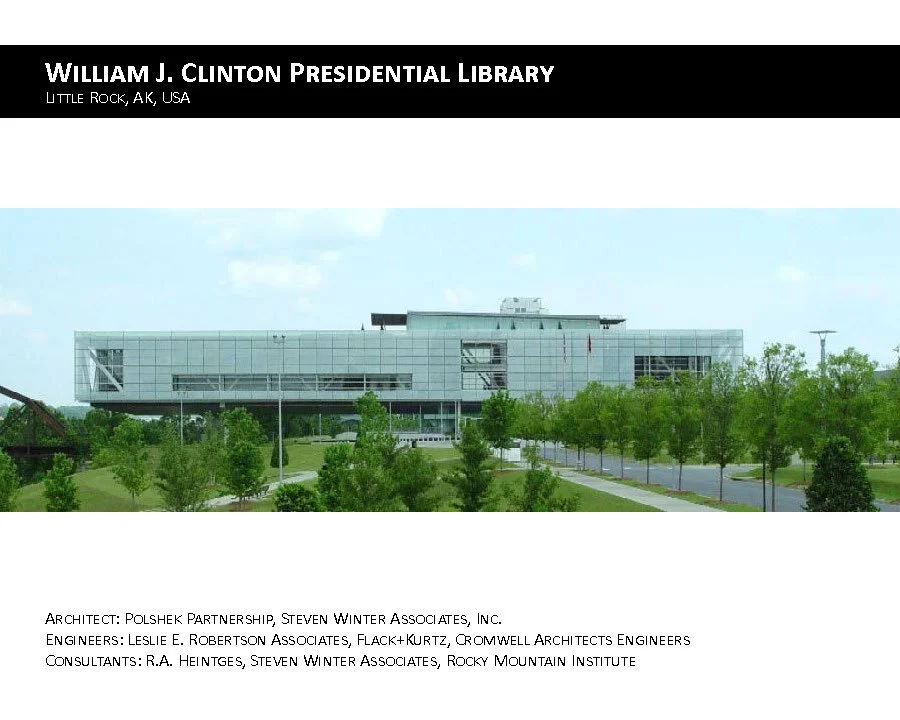

An important part of architecture is precedent research. In order to truly understand a building, you have to do the drawings and create a model. In this one week project, the objective was to understand the systems that were involved in the design of the Clinton Presidential Library, a project by Polshek Partners located in Little Rock, AR. The diagramming was conducted through the use of a Revit model I created.

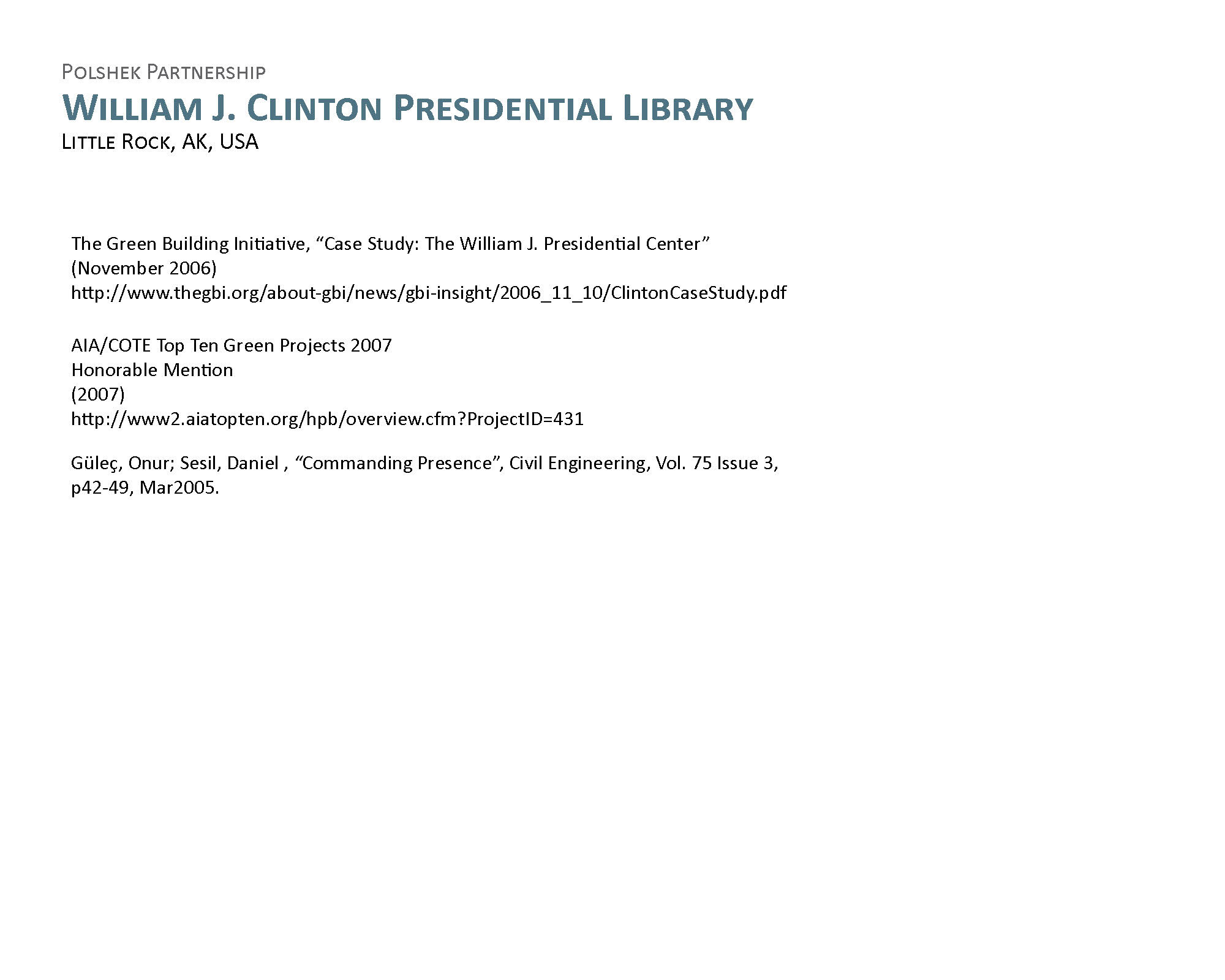

More on the Clinton Presidential Library: Library’s Website | Polshek Partners (now Ennead) Website
